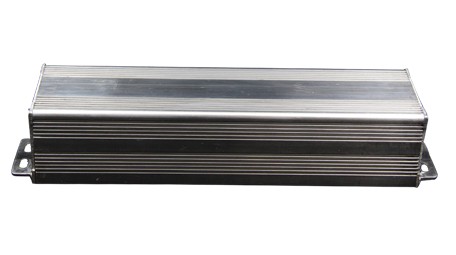

產品資料 > HEW Series 60W Constant Current LED Drivers for Indoor or Outdoor Fixtures

SPECIFICATION
Model HEW -12V HEW -15V HEW -20V HEW -24V HEW -30V HEW -36V HEW -42V HEW -48V
Output Voltage DC12V DC15V DC20V DC24V DC30V DC36V DC42V DC48V
Output Current 5.0A 4.0A 3.0A 2.5A 2.0A 1.7A 1.45A 1.3A
Output Power 60W 60W 60W 60W 60W 60W 60W 60W
Input Voltage Range
AC 100 - 277V
Input Frequency
47 - 63 Hz
Input Ffficiency
Over 85%
Protection Over-Current
Yes
Protection Short Circuit
Yes
Protection Over-Voltage
Yes
Working Environment Ambient Temp
-20C~+70C (at 100% Load)
Working Environment Ambient Humidity
20C~95% R/H non-condensing
Approbation Safety Standards
IEC 61347 / UL1310 / IP66
Approbation EMI / EMS
EN55015 / EN61000 / ENV50204 / EN55024 / EN61547
Reliability MTBF
50000 Hours. minimum MIL-HDBK-217F (at 25C)
Size Dimension
183*45*40mm (L*W*H)
Size Weight
0.55kg
